Colchester, Vermont
Architecture | Birdseye |
---|---|
Interior | Birdseye |
Building | O'Neill Builders |
Photography | Erica Allen |
Completed | 2018 |
Type | Single-family Residence |
Recognition | 2018 AIA VT Citation |

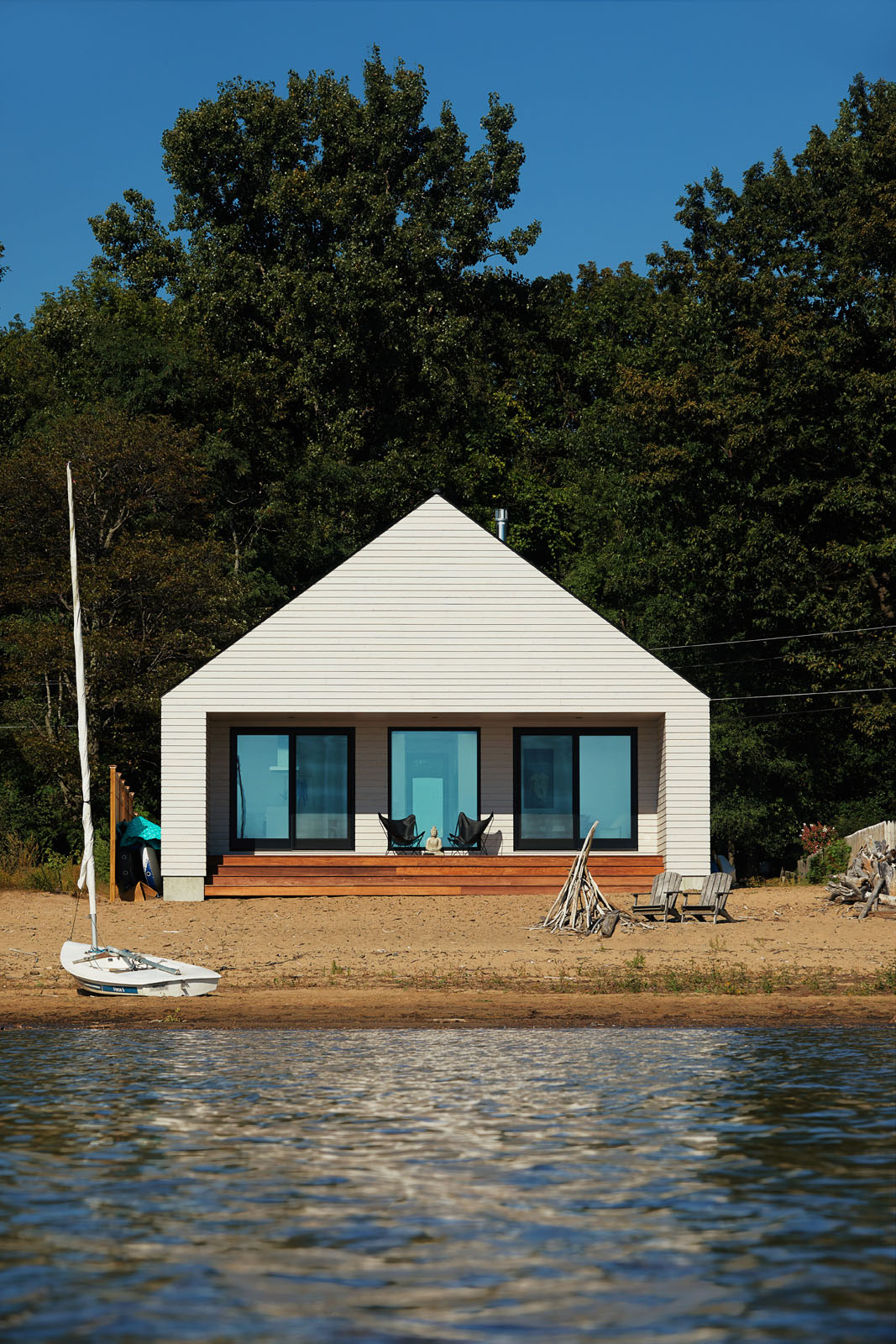

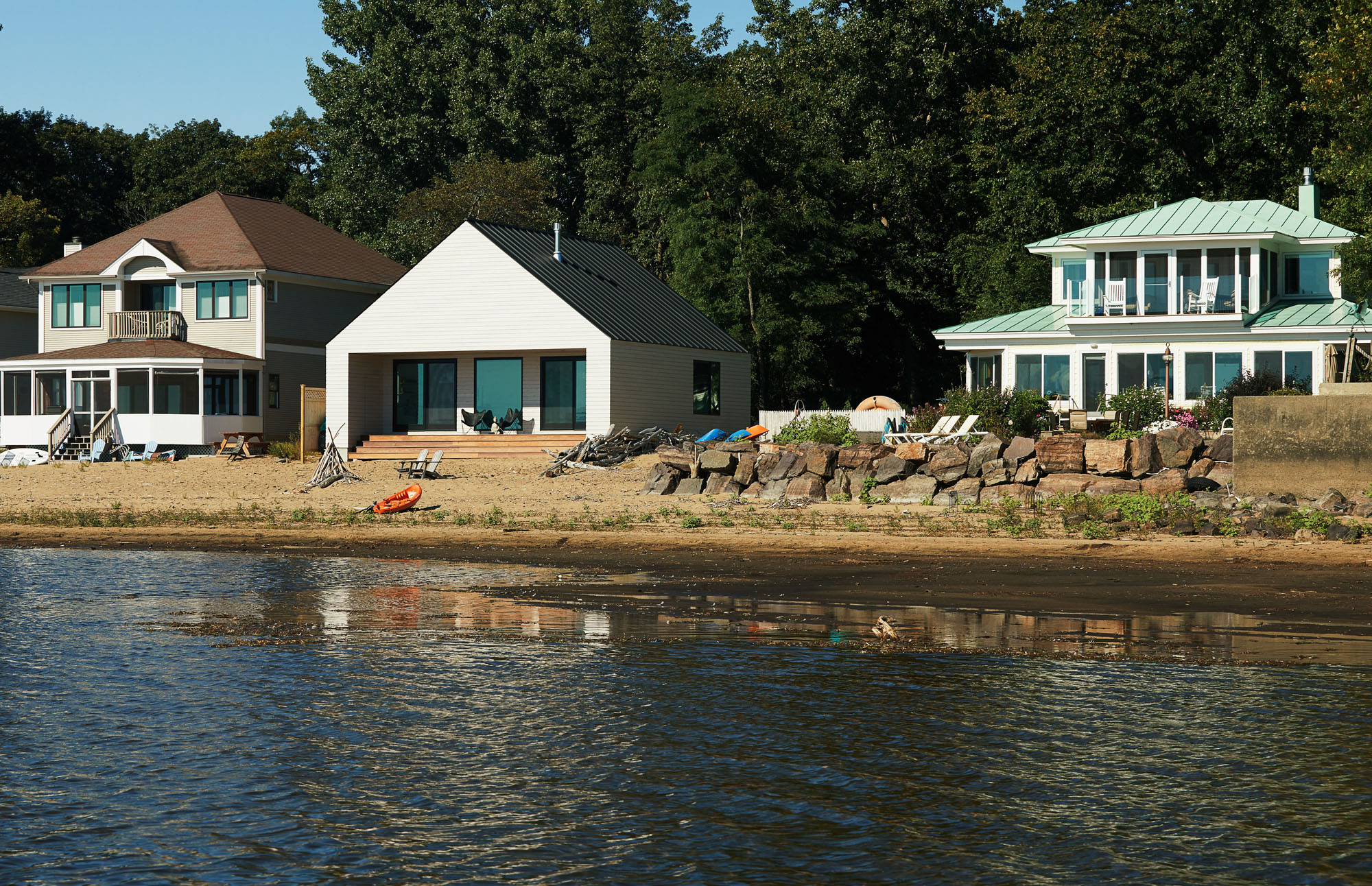

An 850-square-foot beach dwelling on the shore of Lake Champlain.

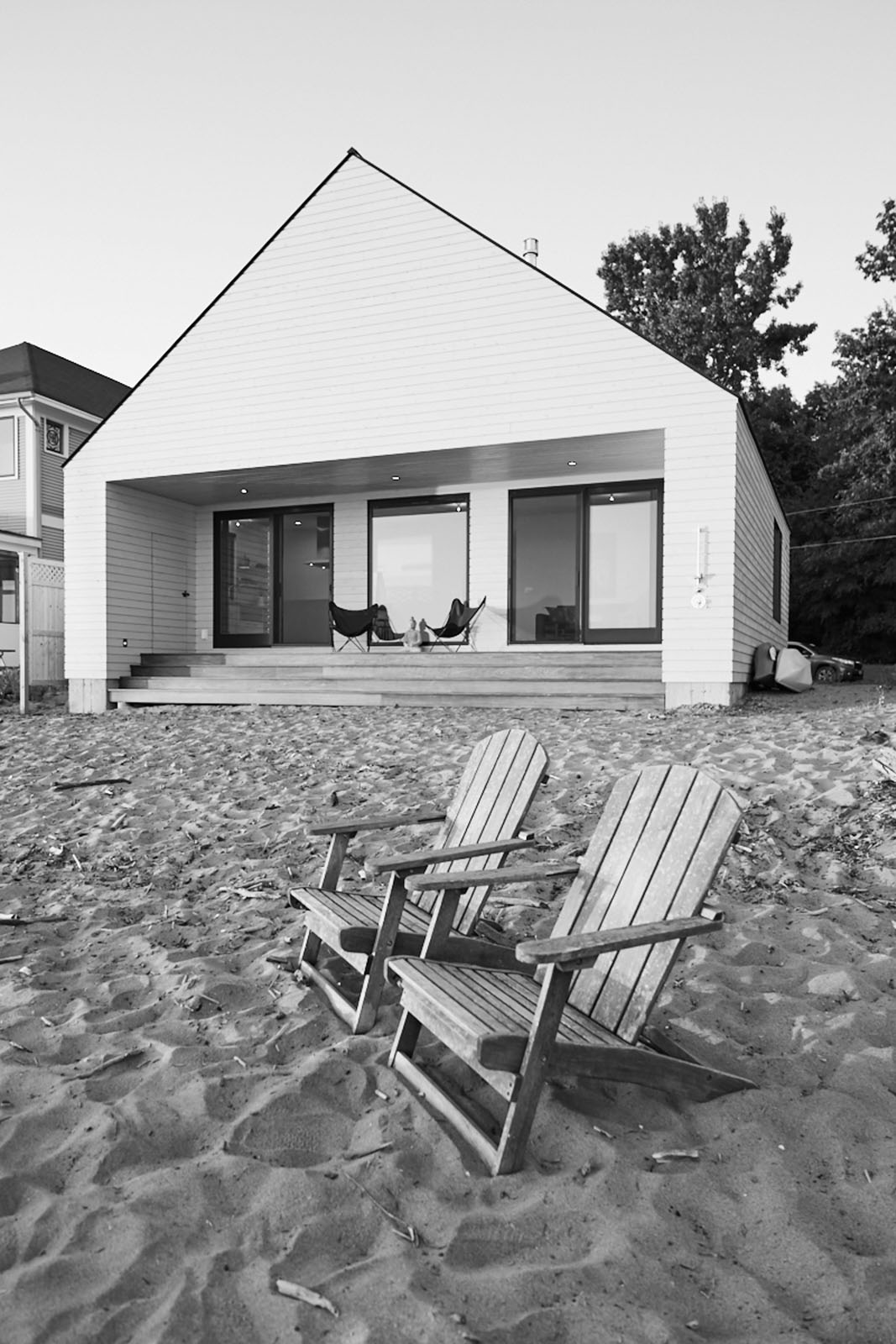

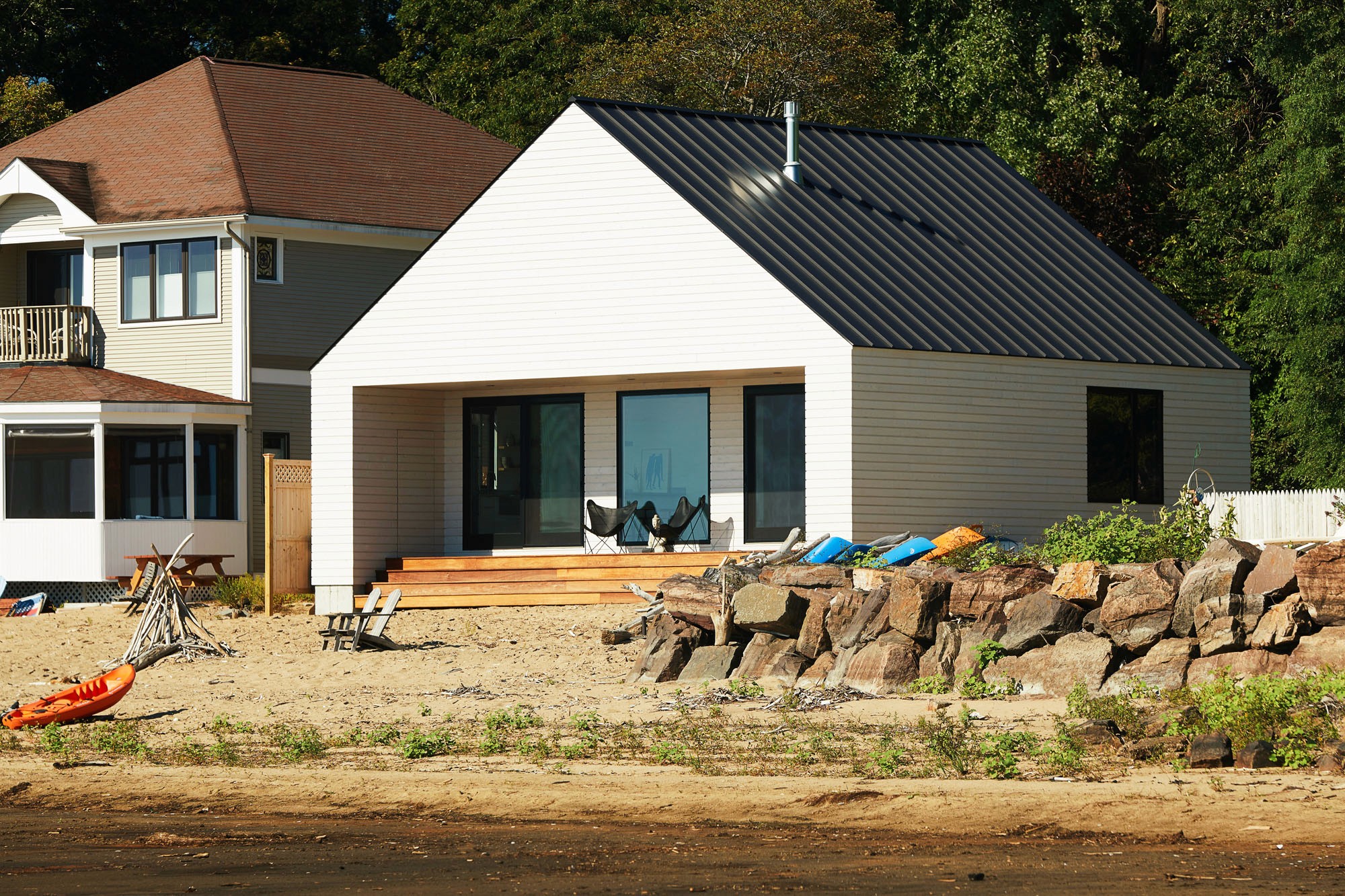

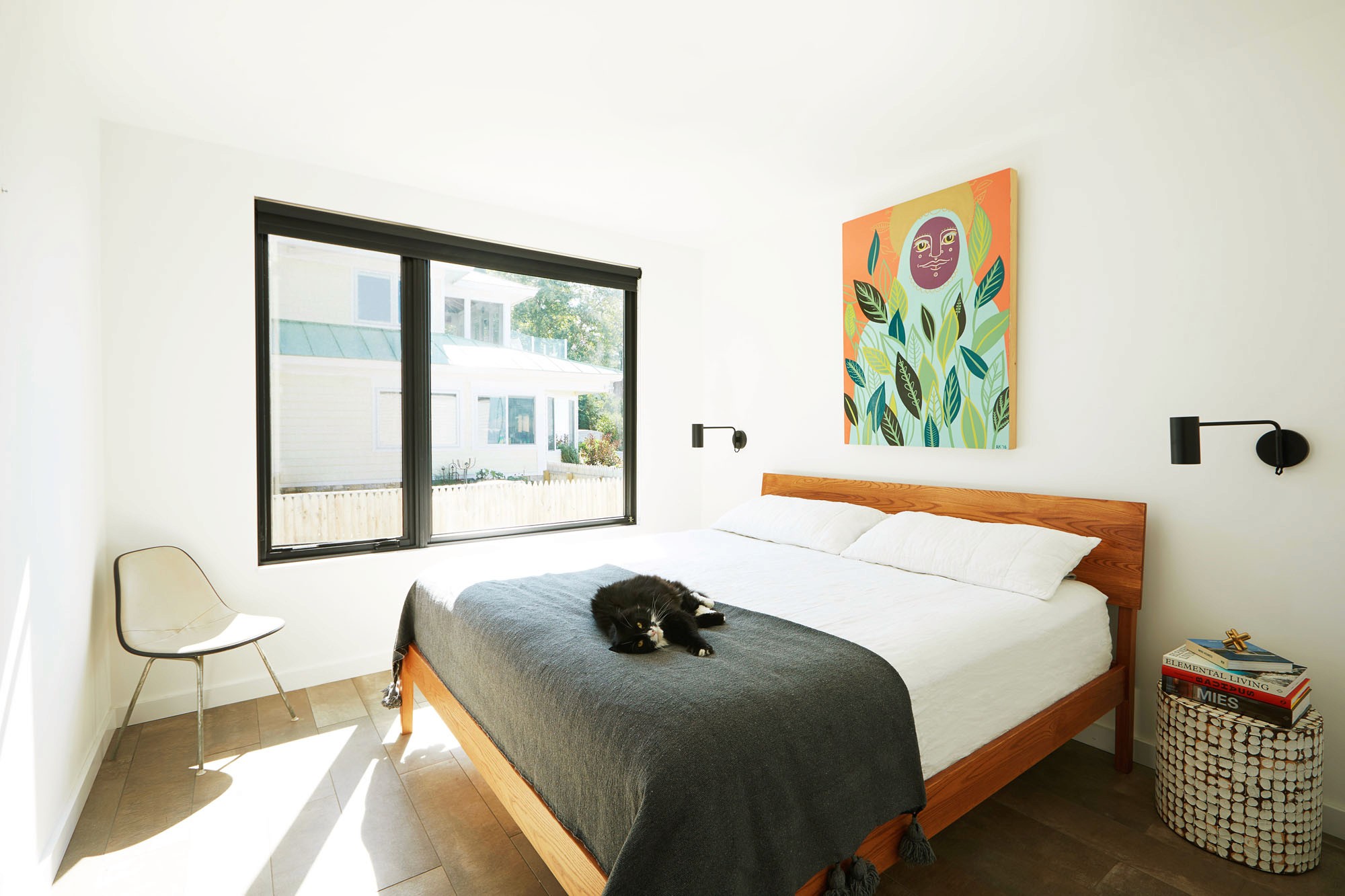

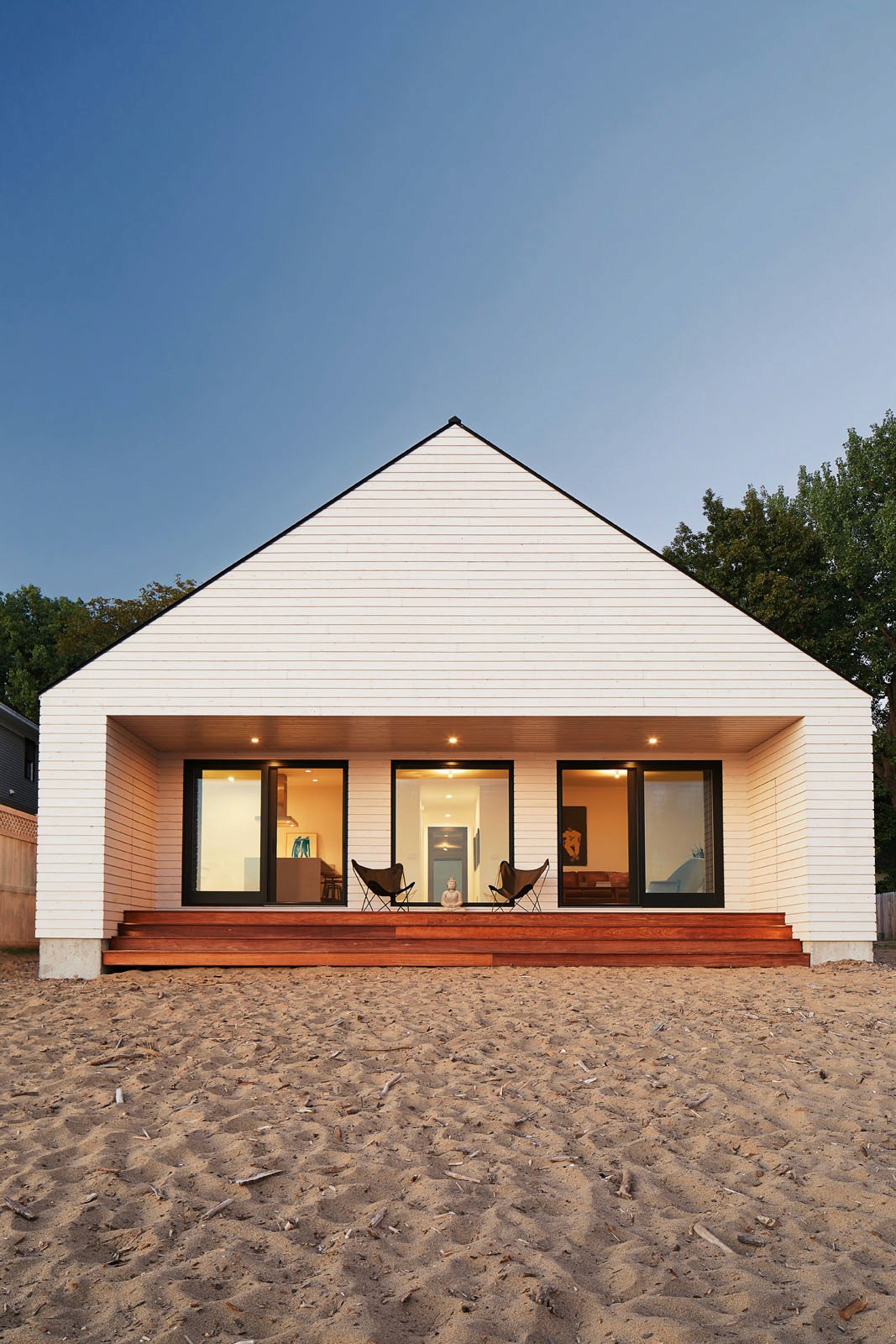

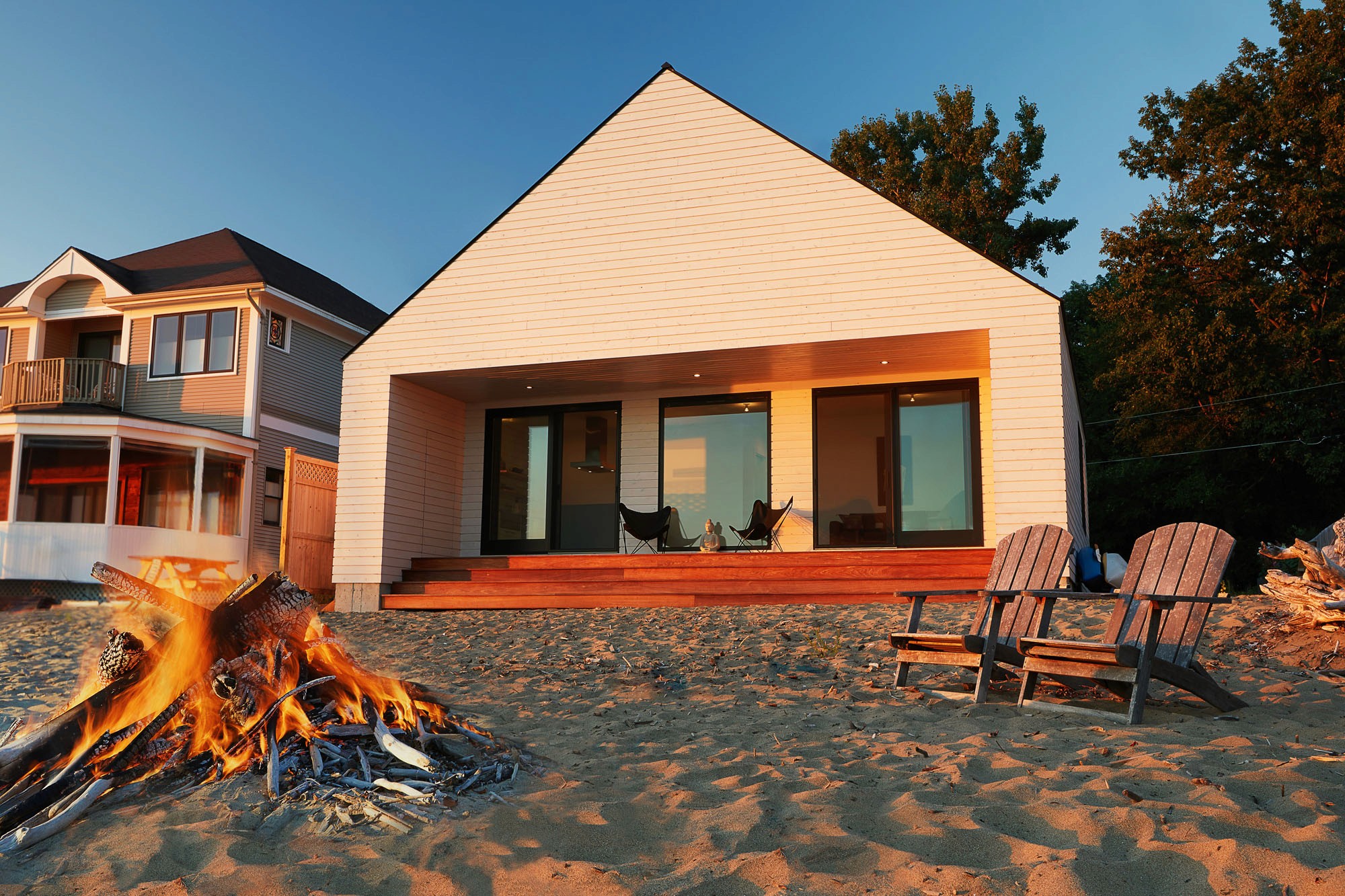

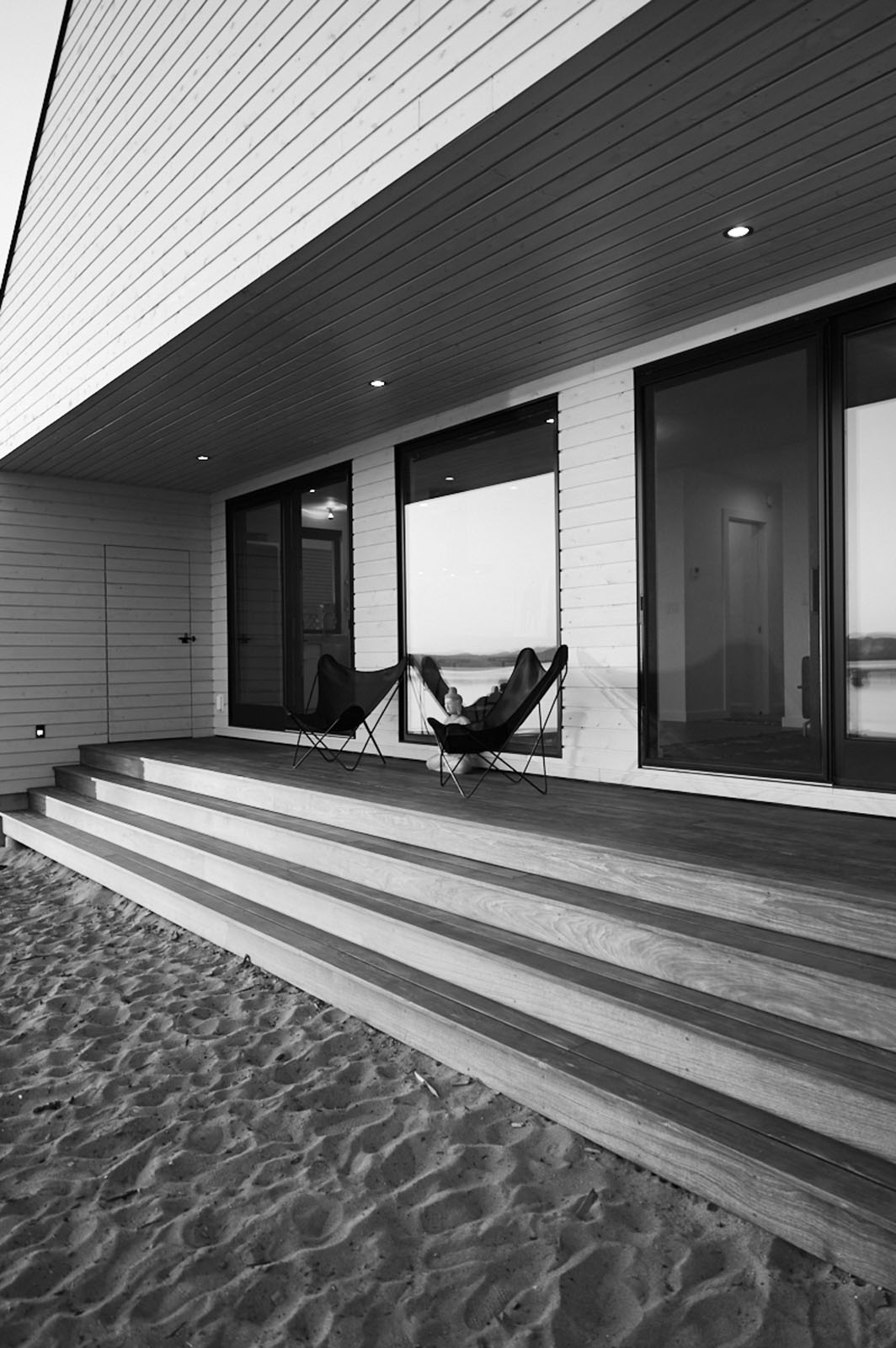

An interior with 850 square feet of living space, divided into common areas; lakeside to the west, bedrooms and utility facing street-side to the east. An extended gable with storage wing walls provides privacy, protection, and shelter for the living areas and covered deck. Storage space is designed into the attic trusses, and the crawl space houses the building infrastructure. Disturbance was limited to the existing footprint, mitigating stress on the surrounding ecosystem and neighborhood.

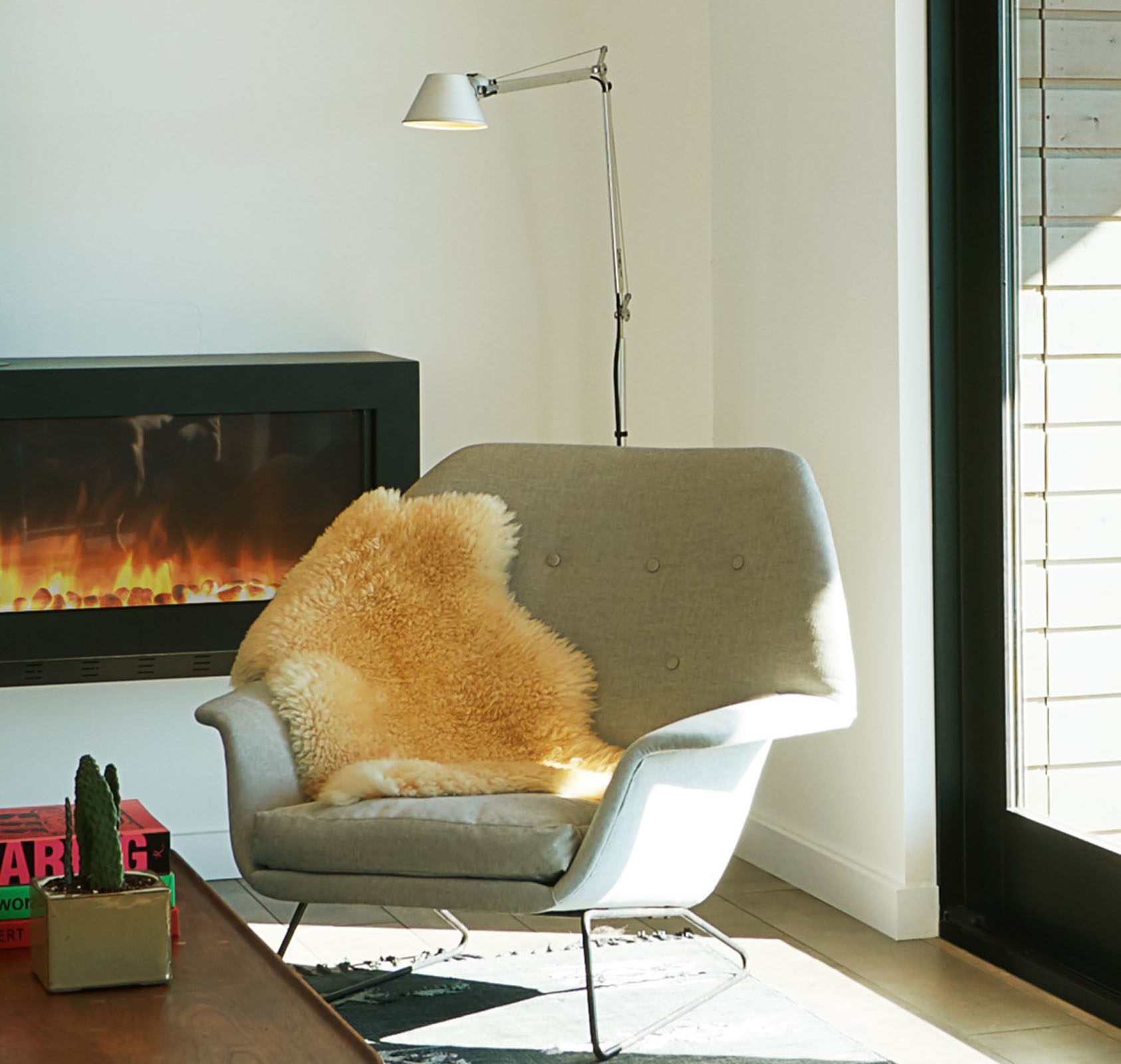

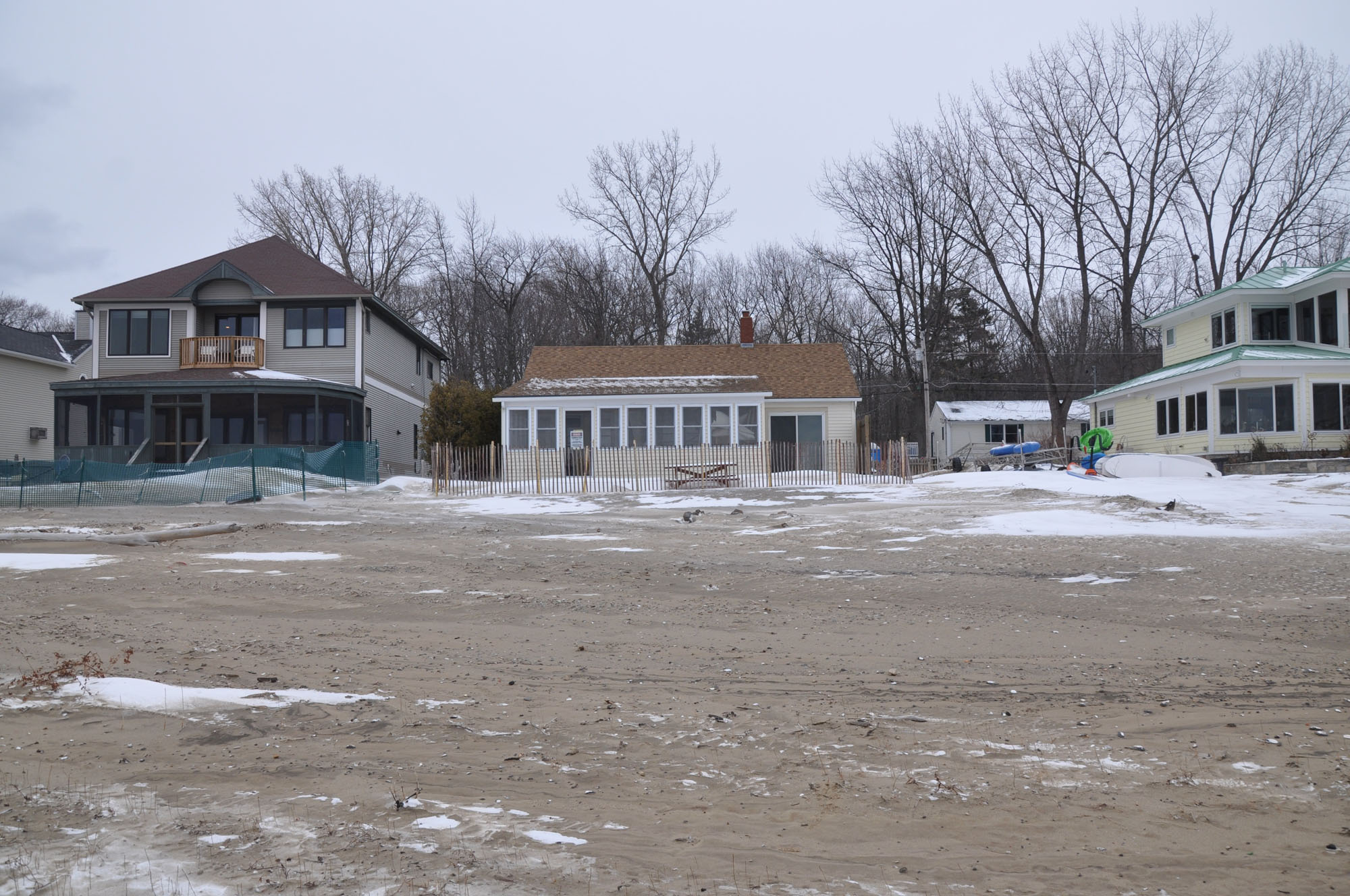

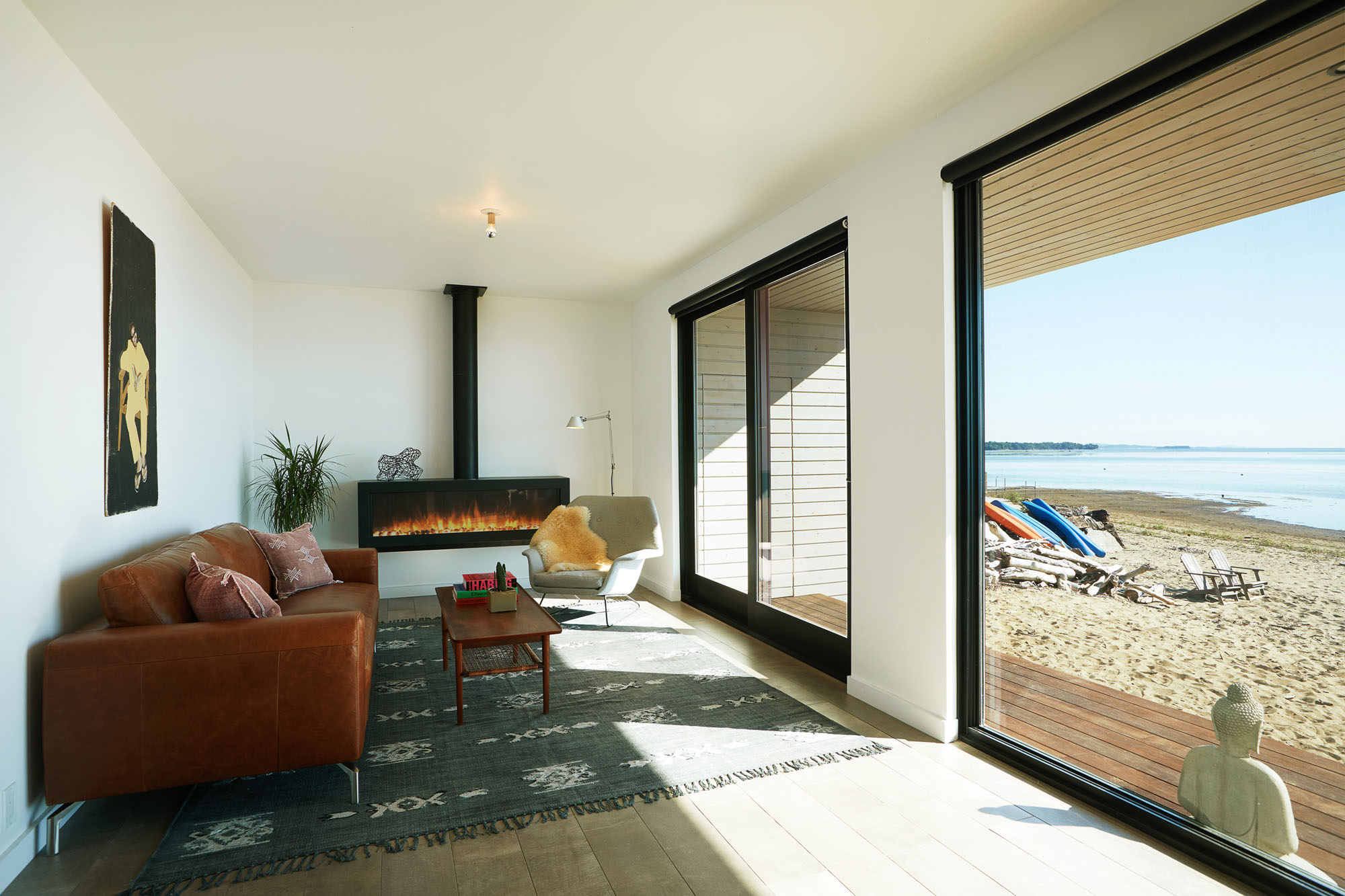

Strict development regulations adopted to protect both community and environment dictated that the new building footprint conform to existing dimensions and meet the resiliency standards of the state and federal codes for structures located in a floodplain. The new structure required that no water be displaced in the event of an extreme weather event, prompting the use of flood gates and slab valves in the crawl space to regulate the intake and ejection of flood waters. Building systems are designed to balance with passive solar gain and cross ventilation for year-round comfort. Heat pumps work to heat and cool the spaces with minimal impact, and a supplemental natural gas fireplace provides a secondary heat source.

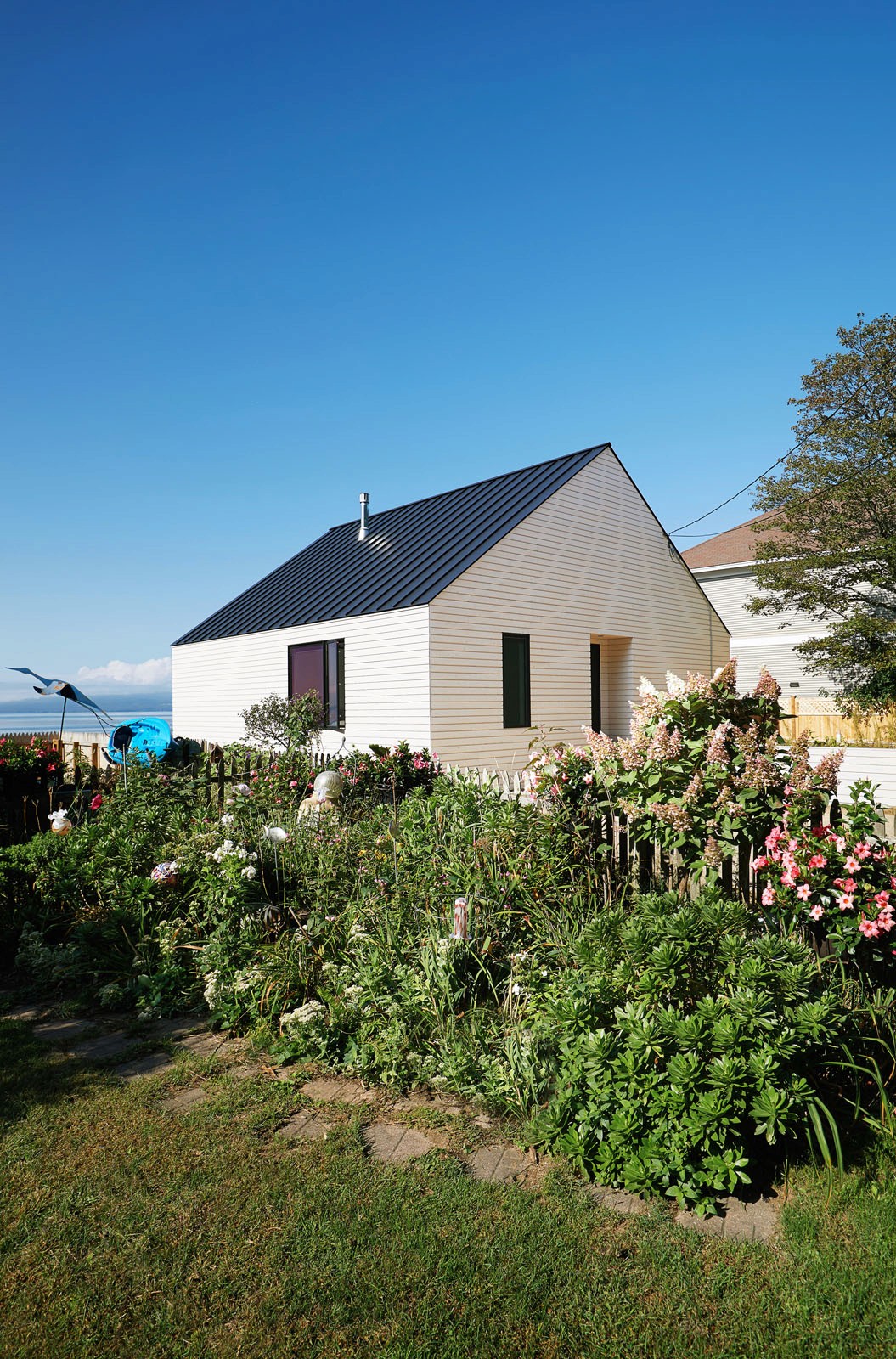

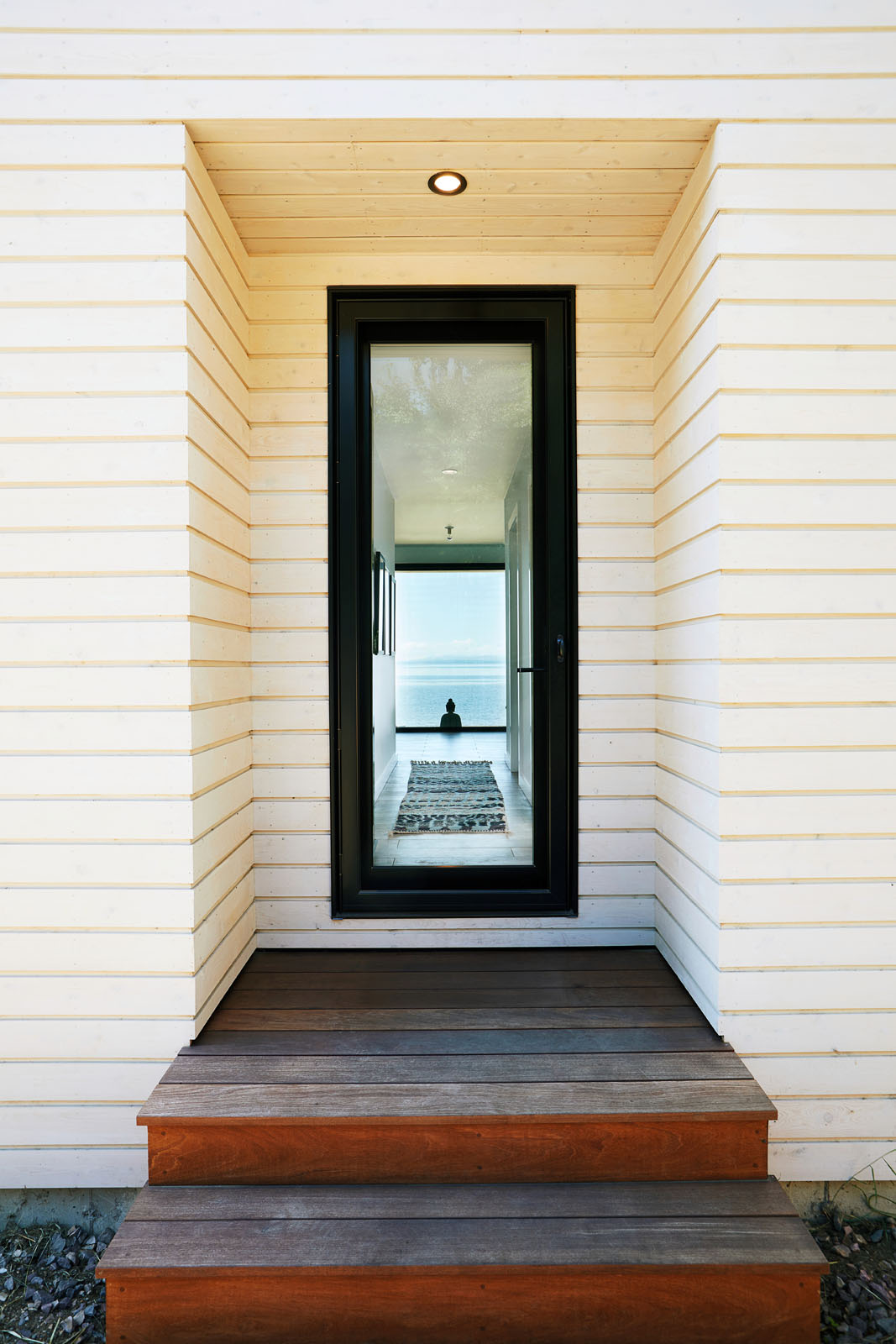

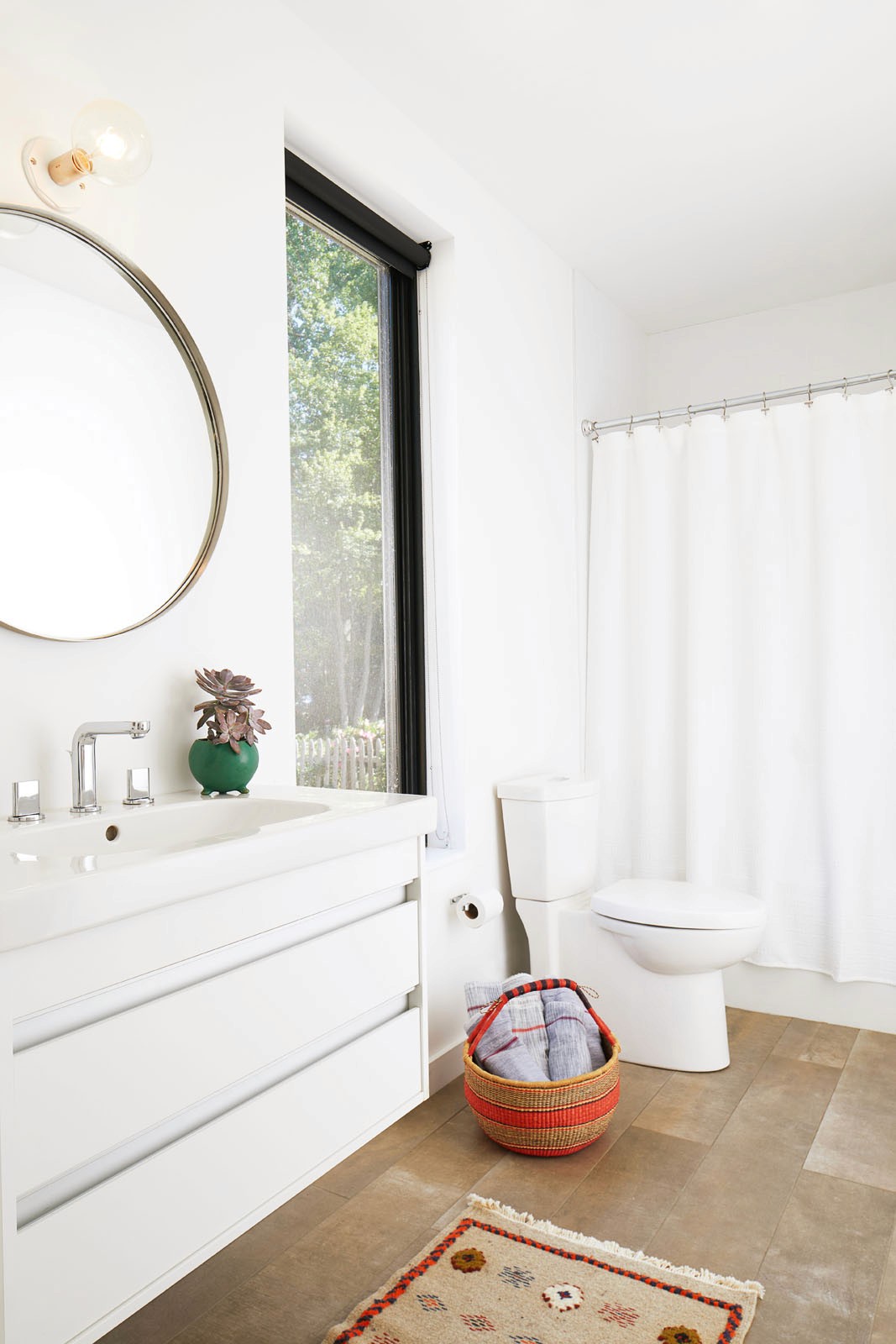

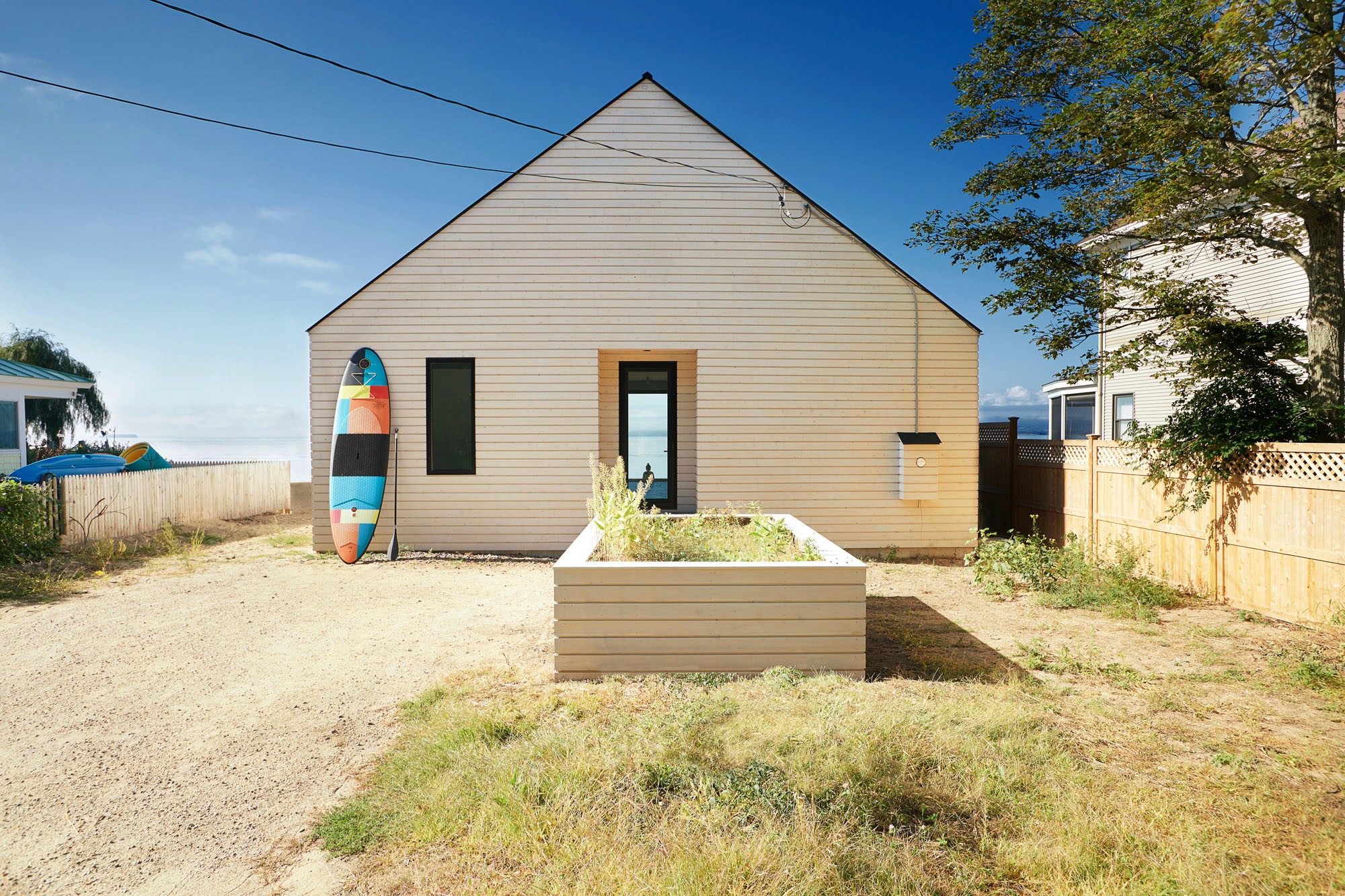

Floor, walls, and ceilings are insulated at R-15, R-19, and R-30 respectively, and the home is prepared for future solar installation at the client’s direction. Insulated, Low-E coated windows and doors provide thermal efficiency to the punched openings of the walls. Low-VOC paints and finishes were applied as necessary and low-flow plumbing fixtures were used throughout. Northern white cedar exterior siding, minimally detailed and locally sourced, was installed with precision and craft as highlighted by the mitered corners. The roof is finished with recycled standing seam metal. The electrical load is reduced with LED lighting throughout the house.
